Use CATALYST with your simulations

Let's try incorporating CATALYST In-Situ visualisation with PLUTO

 for the Sedov Taylor Blast Problem We Tested Just Now


Paraview's website : https://www.paraview.org/download/

mkdir /scratch/<username>/modules

cd /scratch/<username>/modules


wget 'https://www.paraview.org/paraview-downloads/download.php?submit=Download&version=v5.11&type=binary&os=Linux&downloadFile=ParaView-5.11.0-osmesa-MPI-Linux-Python3.9-x86_64.tar.gz'

mv https://www.paraview.org/paraview-downloads/download.php?submit=Download&version=v5.11&type=binary&os=Linux&downloadFile=ParaView-5.11.0-osmesa-MPI-Linux-Python3.9-x86_64.tar.gz  ParaView-5.11.0-osmesa-MPI-Linux-Python3.9-x86_64.tar.gz


tar -xzvf ParaView-5.11.0-osmesa-MPI-Linux-Python3.9-x86_64.tar.gz


ls /scratch/<username>/modules/ParaView-5.11.0-osmesa-MPI-Linux-Python3.9-x86_64/

>> bin  lib  share



Catalyst Git page : https://gitlab.kitware.com/paraview/catalyst

mkdir /scratch/<username>/modules/paraCatalyst

git clone https://gitlab.kitware.com/paraview/catalyst.git


cd catalyst

mkdir build

cd build

cmake -DCMAKE_INSTALL_PREFIX=/scratch/<username>/modules/paraCatalyst -DCATALYST_USE_MPI=ON ..


make -j16 && make install


cd /scratch/<username>/modules/paraCatalyst

>> include  lib64


[NOTE: Always post pend the paraview and catalyst library paths otherwise there's problem with hdf5 libraries

      Here's a  sample ~/.bashrc for reference.

# .bashrc


# Source global definitions

if [ -f /etc/bashrc ]; then

        . /etc/bashrc

fi


shopt  -s direxpand

# . /home-ext/apps/spack/share/spack/setup-env.sh

export SPACK_ROOT=/scratch/<username>/spack

. $SPACK_ROOT/share/spack/setup-env.sh


spack load hwloc@2.7.0%intel@2021.4.0

spack load zlib@1.2.11%intel@2021.4.0

spack load gsl@2.7%intel@2021.4.0

spack load gmp@6.2.1%intel@2021.4.0

spack load hdf5@1.10.8%intel@2021.4.0/ssgjscn

spack load intel-mpi@2019.10.317%intel@2021.4.0/6icwzn3

spack load intel-oneapi-compilers@2021.4.0

spack load cmake@3.22.1/ozzmsd4


export SCRATCH="/scratch/<username>"

export PLUTO_DIR="/scratch/<username>/PLUTO-4.4-updated"

export CATALYST_DIR="/scratch/<username>/modules/paraCatalyst"

export PARAVIEW_DIR="/scratch/<username>/modules/ParaView-5.11.0-osmesa-MPI-Linux-Python3.9-x86_64"


export LIBRARY_PATH=$LD_LIBRARY_PATH

export CPATH=/home-ext/apps/spack/opt/spack/linux-centos7-cascadelake/intel-2021.4.0/hdf5-1.10.8-ssgjscncg3xcw7ogodzjg3whjdmvx3bg/include:$CPATH

export LD_LIBRARY_PATH="$LD_LIBRARY_PATH:$PARAVIEW_DIR/lib"

export LD_LIBRARY_PATH="$LD_LIBRARY_PATH:$CATALYST_DIR/lib64"

      3. Generate CatalystAdaptor.h and python files

 Map out the fluid variables in generateCatalystAdaptor.py and accordingly create the CatalystAdaptor.h header file. A sample python scrpit can be found here, which you may need to tweak a little bit according to your simulation.

dump_vars = ['rho', 'prs', 'vx1', 'vx2', 'vx3']

code_vars = ['RHO', 'PRS', 'VX1', 'VX2', 'VX3']

user_vars = [] #['Temp', 'ndens', 'mach', 'PbykB']

#Assumption: User defined variables are upper case version of user_vars[]

ntracers = 0


4.  Create the Catalyst pipeline scripts with necessary parameters (e.g., density.py here)

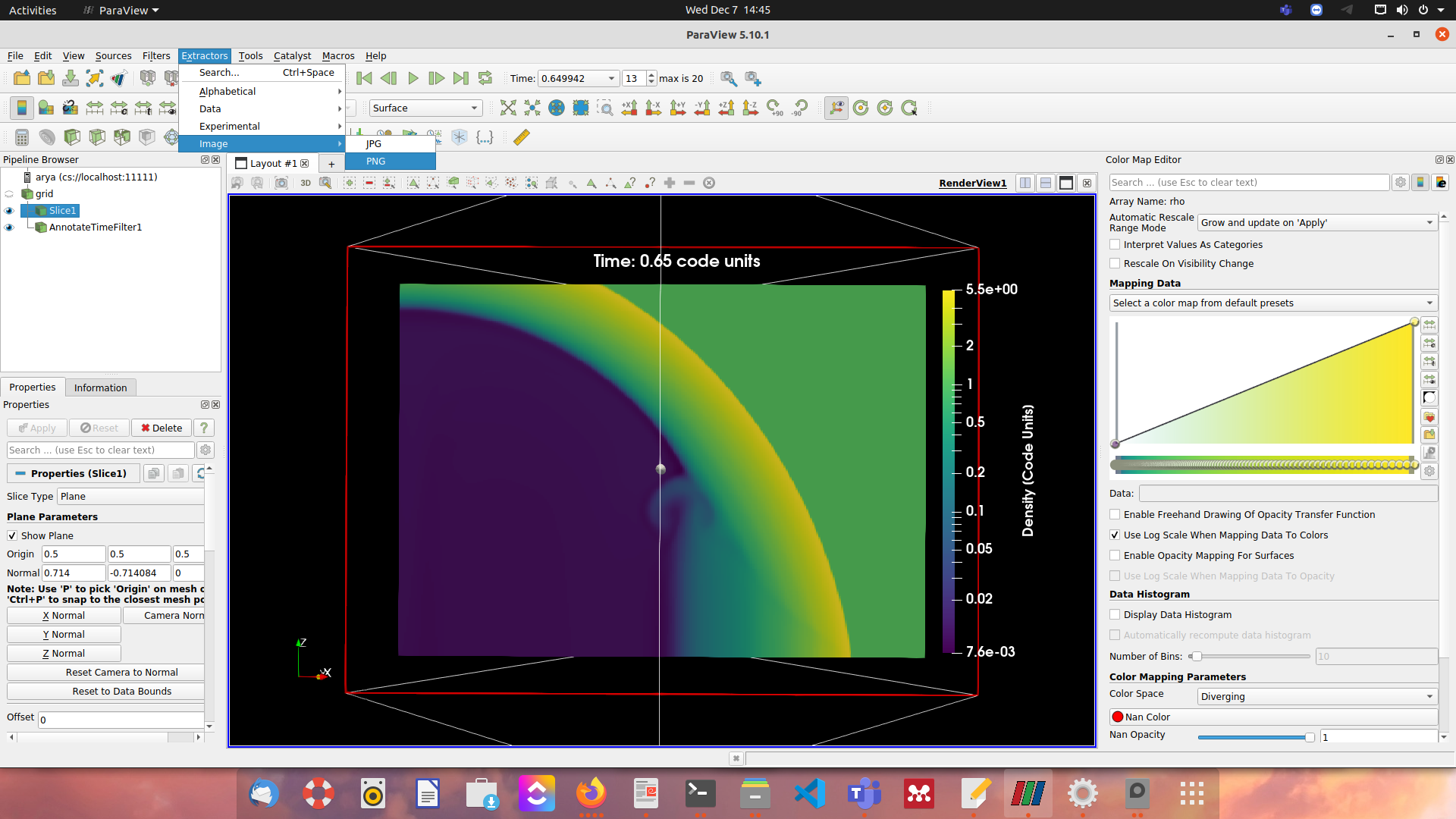

      First, one should change the beginning of the pipeline from data.00* to grid. Then, do all necessary visualisation steps. Here a slice is made diagonally through the cubic box, and the density is plotted in log scale. After all the steps, the grid needs to be extracted to a png format
(Extractors->Image->PNG).

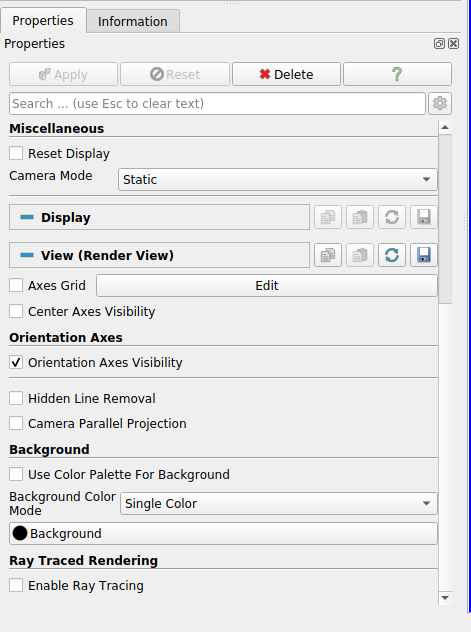

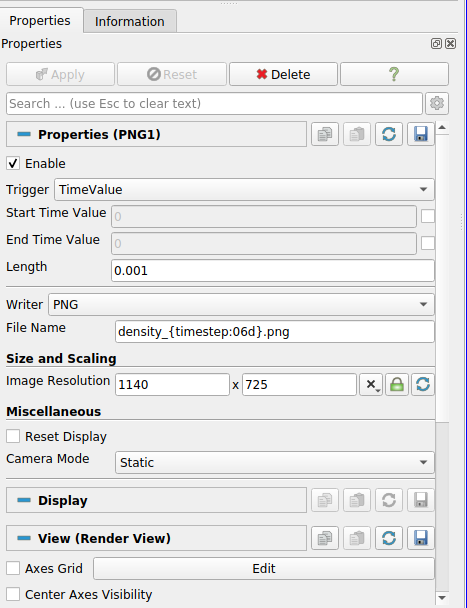

Then edit the PNG extractor properties like Trigger to TimeValue, Trigger Length to 0.001 code units. Also change the Background color palette to a Single Color Mode (like Black in color) as shown in the right images.

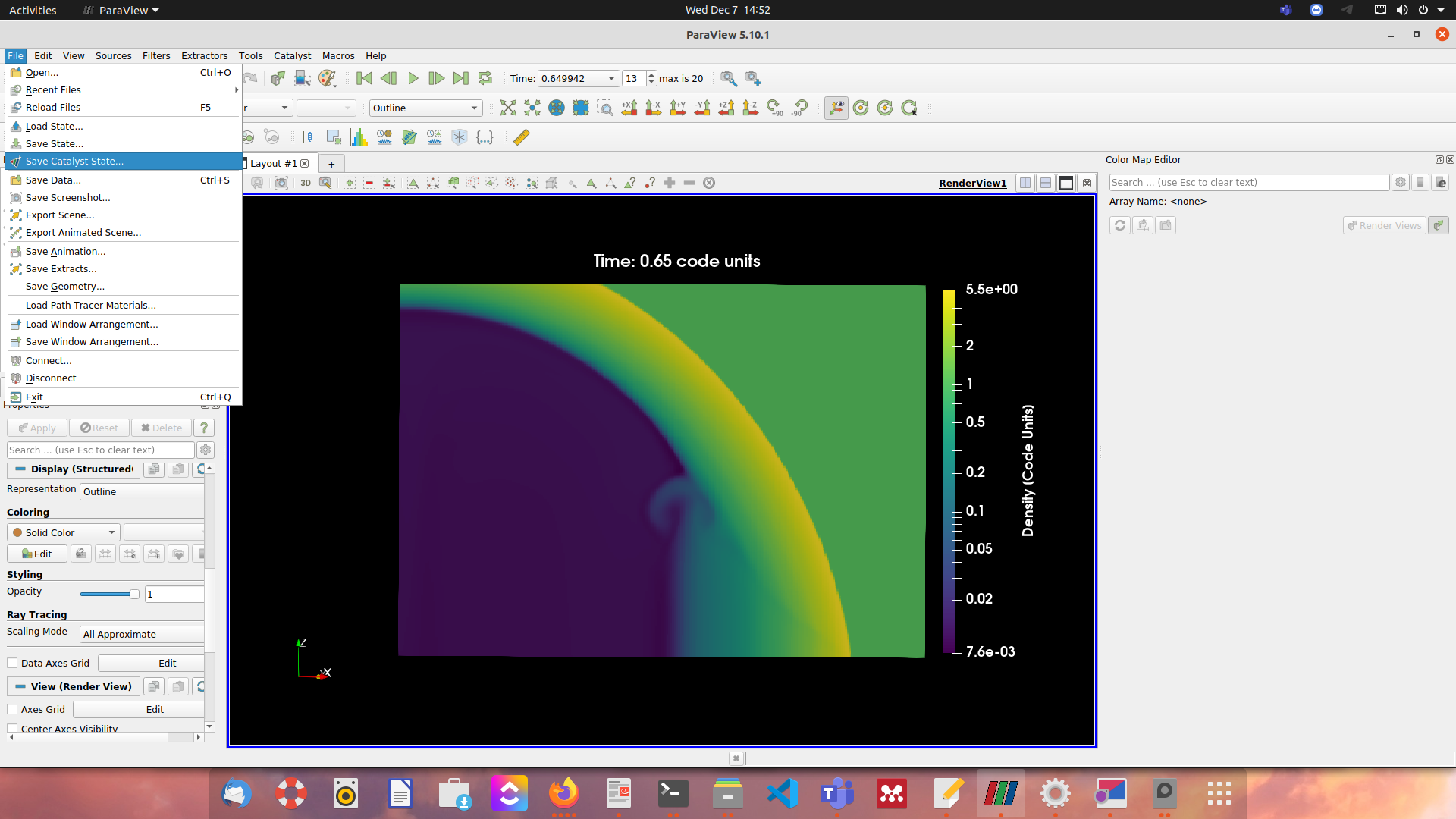

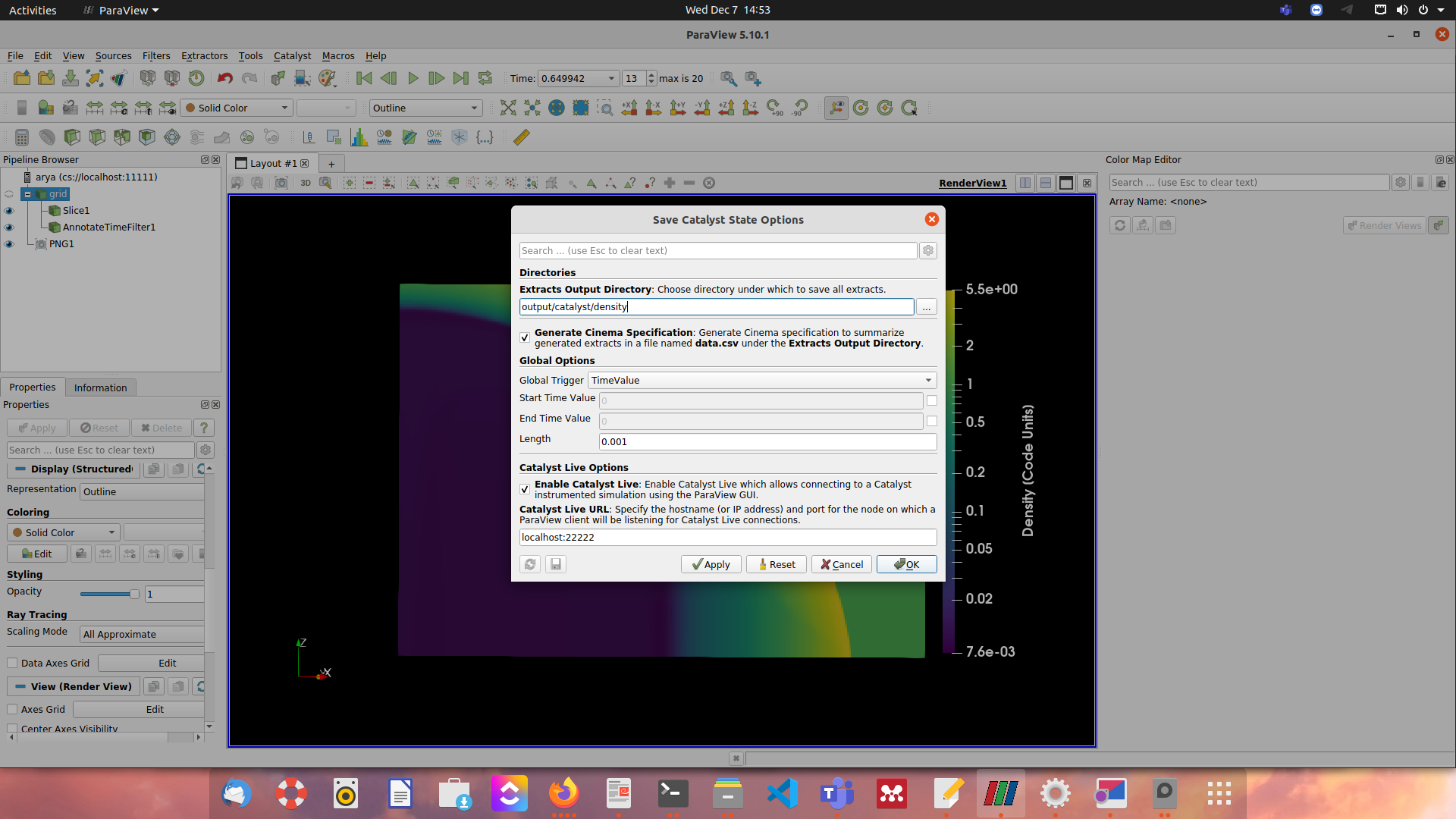

Then, save the catalyst state as shown below, setting up the dump folder (output/catalyst/density in this case) and
the global trigger values.


5.  Add compiler flags to local_make and Compile the Code

Here's a sample local_make

INCLUDE_DIRS += -I/scratch/<username>/modules/paraCatalyst/include/catalyst-2.0

LDFLAGS      += -L/scratch/<username>/modules/paraCatalyst/lib64 -lcatalyst

CFLAGS       += -DUSE_CATALYST # -DCATALYST_DEBUG

CFLAGS       += -DPARAVIEW_IMPL_DIR=\"/scratch/<username>/modules/ParaView-5.11.0-osmesa-MPI-Linux-Python3.9-x86_64/lib/catalyst\" -DVTK_SILENCE_GET_VOID_POINTER_WARNINGS


INCLUDE_DIRS += -I/home/ext/apps/spack/opt/spack/linux-centos7-cascadelake/intel-2021.4.0/hdf5-1.10.8-ssgjscncg3xcw7ogodzjg3whjdmvx3bg/include


LDFLAGS      += -lhdf5 -lz

CFLAGS       += -DUSE_HDF5

OBJ          += hdf5_io.o


Compile the code:     make -j32 && make clean


    6. Submit the slurm script

 An example script:

#!/bin/bash


#SBATCH --job-name="Sedov"

#SBATCH -N 3  # Number of nodes

#SBATCH --ntasks-per-node=48 # Number of core per node

#SBATCH --mail-type=END         # Mail events (NONE, BEGIN, END, FAIL, ALL)

#SBATCH --mail-user=<username>@iisc.ac.in    # Where to send mail.  Set this to your email address

#SBATCH -p debug

#SBATCH -t 00-00:40:00  #dd-hh:mm:ss

#SBATCH --output=%x-%j.log

#SBATCH --error=%x-%j.err


export SPACK_ROOT=/scratch/<username>/spack

. $SPACK_ROOT/share/spack/setup-env.sh


spack load intel-oneapi-compilers@2021.4.0

spack load hwloc@2.7.0%intel@2021.4.0

spack load zlib@1.2.11%intel@2021.4.0

spack load gsl@2.7%intel@2021.4.0

spack load gmp@6.2.1%intel@2021.4.0

spack load fftw@3.3.10%intel@2021.4.0/4s24afk

spack load hdf5@1.10.8%intel@2021.4.0/ssgjscn

#spack load intel-mpi@2019.10.317%intel@2021.4.0/6icwzn3


export SCRATCH="/scratch/<username>/"

export PLUTO_DIR="/scratch/<username>/modules/PLUTO-4.4-updated"

export CATALYST_DIR="/scratch/<username>/modules/paraCatalyst"

export PARAVIEW_DIR="/scratch/<username>/modules/ParaView-5.11.0-osmesa-MPI-Linux-Python3.9-x86_64"


export LIBRARY_PATH=$LD_LIBRARY_PATH

export CPATH=/home-ext/apps/spack/opt/spack/linux-centos7-cascadelake/intel-2021.4.0/hdf5-1.10.8-ssgjscncg3xcw7ogodzjg3whjdmvx3bg/include:$CPATH

export LD_LIBRARY_PATH="$LD_LIBRARY_PATH:$PARAVIEW_DIR/lib"

export LD_LIBRARY_PATH="$LD_LIBRARY_PATH:$CATALYST_DIR/lib64"


if [ X"$SLURM_STEP_ID" = "X" -a X"$SLURM_PROCID" = "X"0 ]

then

 echo "=========================================="

 echo "Date            = $(date)"

 echo "SLURM_JOB_ID    = $SLURM_JOB_ID"

 echo "Nodes Allocated = $SLURM_JOB_NUM_NODES"

 echo "=========================================="

fi

echo "Working Directory = $(pwd)"


cd $SLURM_SUBMIT_DIR

export PROG="./pluto -catalyst 1 density.py"

mkdir -p ./output/Log_Files


#export I_MPI_FALLBACK=disable

#export I_MPI_FABRICS=shm:ofi


mpiexec.hydra -n $SLURM_NTASKS $PROG

Hurray!!!

(Took ~ 22 minutes on 144 processors with mpiicc)

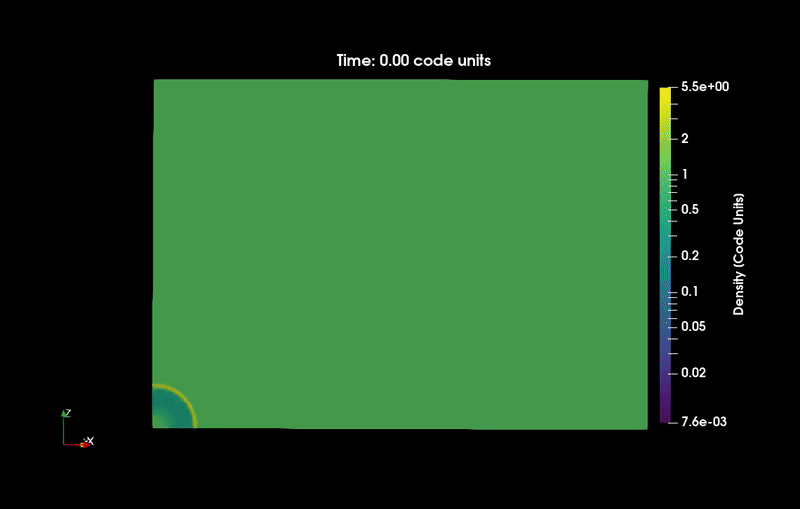

Combine png files to a video format:

ffmpeg -pattern_type glob -i 'density_*.png' -framerate 10 -pix_fmt yuv420p -vf "pad=ceil(iw/2)*2:ceil(ih/2)*2" SedovDensity.mp4

Speed it up if required:

ffmpeg -itsscale 0.25 -i SedovDensity.mp4 -c copy SedovSpeeded.mp4
